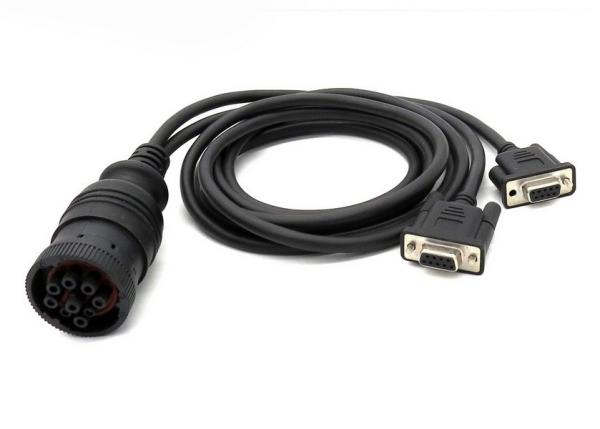

Black J1939 Deutsch 9 Pin Female to Dual D-Sub DB9P Female Truck Y Cable

Shenzhen Jelinn Technology Co., Ltd.
Contact Now

Black J1939 Deutsch 9 Pin Female to Dual D-Sub DB9P Female Truck Y Cable

Brand Name : OEM

Model Number : J1939

Certification : RoHS

Place of Origin : China

MOQ : 100 pcs

Price : Please email us for prices

Payment Terms : T/T, Payoneer, Western Union, PayPal, L/C

Supply Ability : 50,000 pcs per month

Delivery Time : 3-30 working days

Packaging Details : PE bags and then cartons

Wire : 20AWG, pure copper

J1939 female socket : equivalent of Deutsch HD16-9-1939S

Type of J1939 female socket : Type 1

DB9P female sockets : D-Sub DE9 pin female

Working Temperature : −25℃ ~ +85℃

Testing : 100% open, short and miss-wire testing

Testing Voltage : DC300V 5M ohm/10ms

Pins or terminals : copper, nickel-plated or gold-plated

Contact Now

Black J1939 Deutsch 9 Pin Female to Dual D-Sub DB9P Female Truck Y Cable


Specification

J1939 female socket equivalent of Deutsch HD16-9-1939S
Type of J1939 female socket Type 1
Color of J1939 female socket Black
DB9P female sockets D-Sub DE9 pin female
Wire 20AWG, pure copper
Material of J1939 female socket PA66 + glass fiber
Pin assignment or pinout customized
Cable length customized
Pins or terminals copper, nickel-plated or gold-plated
Contact Resistance 3 ohm max.
Insulation Resistance 5M ohm min.
Working Temperature −25℃ ~ +85℃
Testing 100% open, short and miss-wire testing
Testing Voltage DC300V 5M ohm/10ms
Warranty 1 year

The end of Deutsch 9 Pin female socket can be overflow molded or not, according to your needs. If the ends are overflow molded, the cables are more sturdy and durable. If not overflow molded, the price can be lower because the raw material and labour cost is saved.

Black J1939 Deutsch 9 Pin Female to Dual D-Sub DB9P Female Truck Y Cable

Overflow molded

Black J1939 Deutsch 9 Pin Female to Dual D-Sub DB9P Female Truck Y Cable

Not overflow molded



Pin assignment or pin out

The pin assignment or pin out can be customized according to your needs.



Application

This is a cable between the J1939 round Deutsch 9-pin connector (test equipment side - mates to the J1939 vehicle) and a DB9 pin female connector. The J1939 +/- data lines are connected to the CAN +/- lines, and the power and ground lines are also connected.

Some telematics, fleet management devices or trucking technology devices can be connected to this cable and then to the J1939 9-pin round ports in commercial vehicles. These telematics, fleet management devices or trucking technology devices have the DB9P male ports, which can be matched with the DB9P female sockets on this cable.

This cable can also be used to connect diagnostic devices/tools or scanners or code readers (with the appropriate software) to the round J1939 9-pin ports in heavy duty commercial vehicles such as Kenworth, International, Freightliner, Isuzu, Hino, Mack, Peterbilt, Oshkosh, Sterling, Volvo, Workhorse, Navistar and Western Star.
